Liquid Chilling Evaporator

  •  Liquid Chilling Evaporator
  •  Liquid Chilling Evaporator

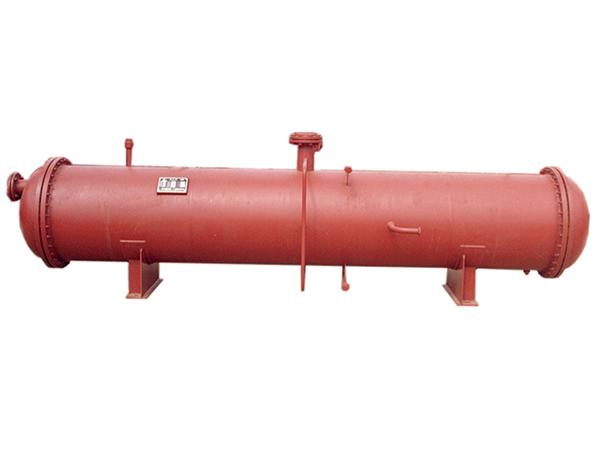

Flooded Evaporator
Models: ZFM30 /ZFM56 /ZFM90 /ZFM120 /ZFM160 /ZFM200 /ZFM250 /ZFM300 /ZFM360 /ZFM420 /ZFM600 /ZFM700 /ZFM800
Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~800m2
Nominal heat exchanger power: 75KW~2000KW
Design pressure for shell: 1.4Mpa
Design pressure for tube: 0.6Mpa

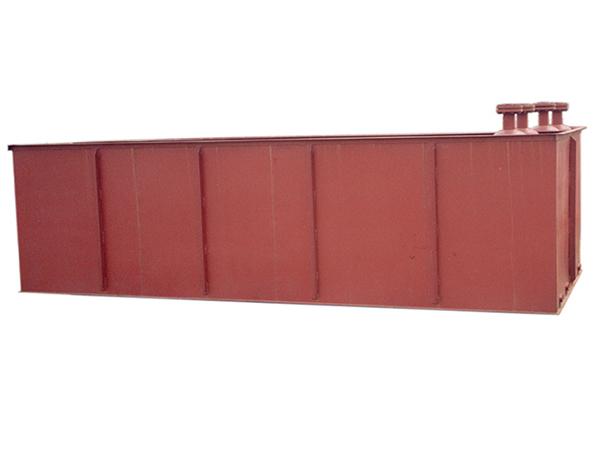

Vertical Evaporator
Models: ZFL30 /ZFL60 /ZFL90 /ZFL120 /ZFL160 /ZFL200 /ZFL240 /ZFL320 /ZFL360 /ZFL420 /ZFL480 /ZFL520 /ZFL600
Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~600m2
Nominal heat exchanger power: 90KW~1580KW
Design pressure: 1.6Mpa
Uses: Turns salt water(brine) into ice, or provides pre-cooled water


Siphon Evaporator
Models: ZFH30 /ZFH56 /ZFH90 /ZFH120 /ZFH160 /ZFH200 /ZFH250 /ZFH300 /ZFH360 /ZFH420
Specifications of the Ammonia Evaporator
Accepts refrigerant R717 (ammonia)
Heat exchanger area: 30m2~420m2 , shell and tube heat exchanger
Normal heat exchanger power: 160KW~2225KW
Design pressure for shell: 1.4Mpa
Design pressure for tube: 0.6Mpa
Uses: To make ice or icy water

Founded in 1956, Moon Environment Technology Co., Ltd has been ranked as Top 100 enterprises in machinery industry of China. It is the first-class cold & hot system integration service expert, and has been leading the technology development of China's refrigeration and air conditioning industry for a long term. Moon Environment Technology Co., Ltd always aims at creating a better life for the human being and providing safe, environmentally-friendly, energy-saving refrigeration equipment and sincere service for the worldwide users. We provide customers with complete hot & cold system equipment solutions to meet users' specific and exact requirements, and realize sustainable development.
